How to use negative examples

In some scenarios it might be useful to explicitly show the model images that should be considered background, these are called "negative examples" and are images that do not contain any annotations.

In this tutorial we're going to be training two raccoons detectors and observe how they perform on images of dogs and cats. One of the models will be trained only with images of raccoons, while the other will also have access to images of dogs and cats (the negative examples).

As you might already have imagined, the model that was trained with raccoon images predicts all animals to be raccoons!

Info

The first half of this tutorial is almost an exact copy from this tutorial.

Installation

!pip install icevision[all] icedata

Imports

from icevision.all import *

Define class_map

Even when training with pets data the only class we want to detect is raccoon.

class_map = ClassMap(['raccoon'])

Raccoon dataset

The dataset is stored on github, so a simple git clone will do.

!git clone https://github.com/datitran/raccoon_dataset

The raccoon dataset uses the VOC annotation format, icevision natively supports this format:

raccoon_data_dir = Path('raccoon_dataset')
raccoon_parser = parsers.voc(annotations_dir=raccoon_data_dir /'annotations',
                            images_dir=raccoon_data_dir /'images',
                            class_map=class_map)

Let's go ahead and parse our data with the default 80% train, 20% valid, split.

raccoon_train_records, raccoon_valid_records = raccoon_parser.parse()

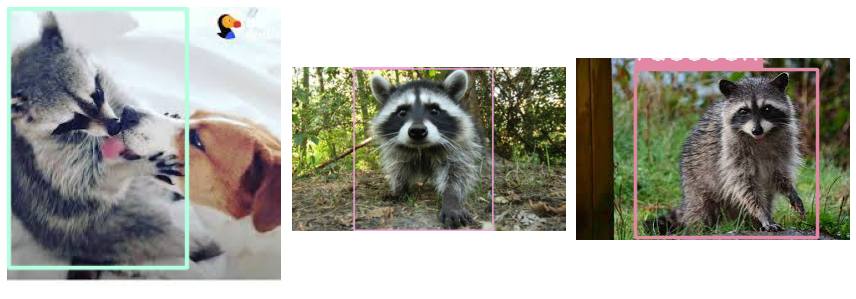

show_records(random.choices(raccoon_train_records, k=3), ncols=3, class_map=class_map)

png

Pets dataset

With icedata we can easily download the pets dataset:

pets_data_dir = icedata.pets.load_data()

Here we have a twist, instead of using the standard parser (icedata.pets.parser) which would parse all annotations, we will instead create a custom parser that returns an empty list for labels and bboxes.

Remember the steps for generating a custom parser (check this tutorial for more information), first define all your mixins and call generate_template:

class PetsImageParser(parsers.Parser, parsers.FilepathMixin, parsers.LabelsMixin, parsers.BBoxesMixin):
    pass

PetsImageParser.generate_template()

def __iter__(self) -> Any:
def imageid(self, o) -> Hashable:
def image_width_height(self, o) -> Tuple[int, int]:
    return get_image_size(self.filepath(o))
def filepath(self, o) -> Union[str, Path]:
def bboxes(self, o) -> List[BBox]:
def labels(self, o) -> List[int]:

And now we use that to fill the required methods:

class PetsImageParser(parsers.Parser, parsers.FilepathMixin, parsers.LabelsMixin, parsers.BBoxesMixin):
    def __init__(self, data_dir):
        self.image_filepaths = get_image_files(data_dir)

    def __iter__(self) -> Any:
        yield from self.image_filepaths

    def imageid(self, o) -> Hashable:
        return o.stem

    def filepath(self, o) -> Union[str, Path]:
        return o

    def image_width_height(self, o) -> Tuple[int, int]:
        return get_image_size(self.filepath(o))

    def labels(self, o) -> List[int]:
        return []

    def bboxes(self, o) -> List[BBox]:
        return []

Now we're ready to instantiate the parser and parse the data:

pets_parser = PetsImageParser(pets_data_dir)
pets_train_records, pets_valid_records = pets_parser.parse()

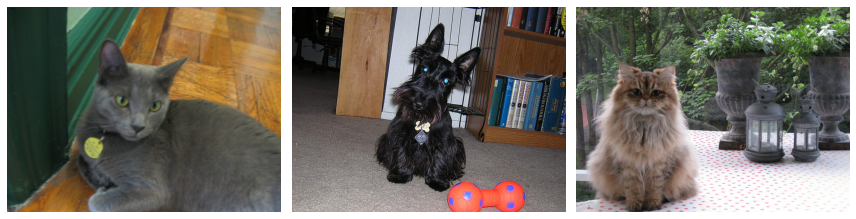

show_records(random.choices(pets_train_records, k=3), ncols=3, class_map=class_map)

png

Transforms

Let's define a simple list of transforms, they are the same for both datasets.

presize = 512
size = 384

train_tfms = tfms.A.Adapter([*tfms.A.aug_tfms(size=size, presize=presize), tfms.A.Normalize()])
valid_tfms = tfms.A.Adapter([*tfms.A.resize_and_pad(size=size), tfms.A.Normalize()])

Datasets and DataLoaders

We create the raccoon dataset and dataloader as normal:

raccoon_train_ds = Dataset(raccoon_train_records, train_tfms)
raccoon_valid_ds = Dataset(raccoon_valid_records, valid_tfms)

raccoon_train_dl = efficientdet.train_dl(raccoon_train_ds, batch_size=16, num_workers=4, shuffle=True)
raccoon_valid_dl = efficientdet.valid_dl(raccoon_valid_ds, batch_size=16, num_workers=4, shuffle=False)

For adding the pets data, we simply have to combine the list of records. Note that the pets dataset contains a lot more images than the raccoon dataset, so we'll get only 100 images for train and 30 for valid, feel free to change these numbers and explore the results!

combined_train_ds = Dataset(raccoon_train_records + pets_train_records[:100], train_tfms)
combined_valid_ds = Dataset(raccoon_valid_records + pets_valid_records[:30], valid_tfms)

combined_train_dl = efficientdet.train_dl(combined_train_ds, batch_size=16, num_workers=4, shuffle=True)
combined_valid_dl = efficientdet.valid_dl(combined_valid_ds, batch_size=16, num_workers=4, shuffle=False)

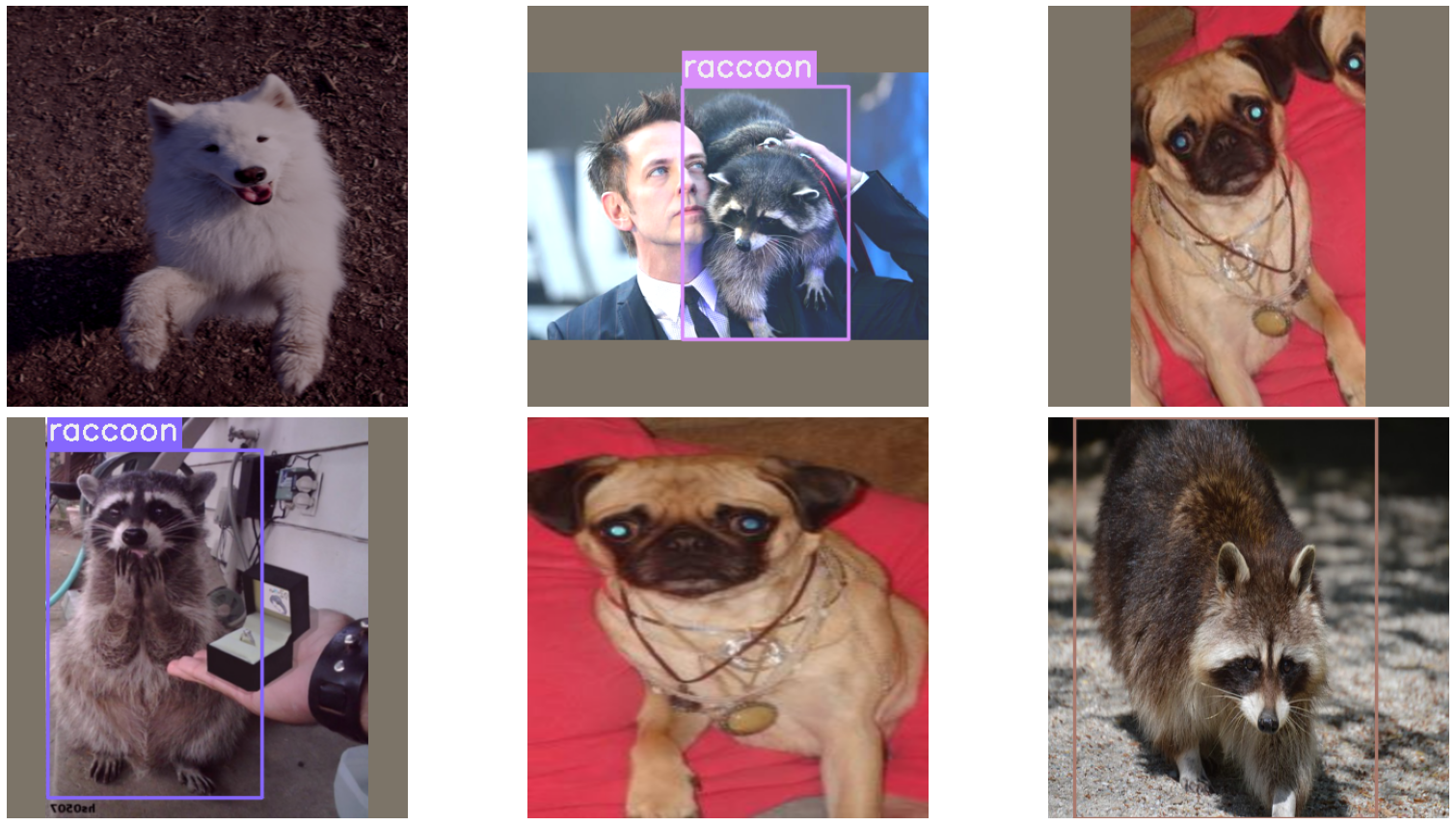

Let's take a look at the combined dataset:

show_samples(random.choices(combined_train_ds, k=6), class_map=class_map, ncols=3)

png

Metrics

As usual, let's stick with our COCOMetric:

metrics = [COCOMetric(metric_type=COCOMetricType.bbox)]

Models

We're now ready to train a separate model for each dataset and see how the results change!

Raccoons only

raccoon_model = efficientdet.model('tf_efficientdet_lite0', num_classes=len(class_map), img_size=size)
raccoon_learn = efficientdet.fastai.learner(dls=[raccoon_train_dl, raccoon_valid_dl], model=raccoon_model, metrics=metrics)

raccoon_learn.fine_tune(30, 1e-2, freeze_epochs=5)
epoch train_loss valid_loss COCOMetric time
0 280.362213 288.541992 0.000031 00:09
1 255.560837 275.054901 0.001539 00:07
2 201.386978 203.328262 0.000882 00:07
3 138.040710 53.258076 0.000992 00:07
4 98.638695 21.866730 0.185121 00:07
epoch train_loss valid_loss COCOMetric time
0 0.789586 23.308876 0.220375 00:08
1 0.738028 13.141761 0.234339 00:08
2 0.692019 9.430372 0.289227 00:08
3 0.646733 5.213285 0.367285 00:08
4 0.598996 2.703029 0.499523 00:08
5 0.566802 2.002367 0.428408 00:08
6 0.540306 1.171565 0.512689 00:08
7 0.514873 1.075465 0.408631 00:08
8 0.494372 0.699056 0.547269 00:08
9 0.474496 0.772929 0.429607 00:08
10 0.456045 0.565817 0.545960 00:08
11 0.436963 0.516108 0.502583 00:08
12 0.422333 0.526793 0.552966 00:08
13 0.406885 0.607857 0.435570 00:08
14 0.396543 0.450901 0.538114 00:08
15 0.385096 0.433830 0.568332 00:08
16 0.372637 0.433433 0.556526 00:08
17 0.356291 0.412439 0.615498 00:08
18 0.346603 0.424790 0.583552 00:08
19 0.335853 0.394423 0.599287 00:08
20 0.323742 0.351422 0.660224 00:08
21 0.314364 0.338674 0.640041 00:08
22 0.307630 0.344830 0.655402 00:08
23 0.303521 0.322497 0.656412 00:08
24 0.297675 0.319093 0.654938 00:08
25 0.288858 0.333945 0.641190 00:08
26 0.286353 0.320516 0.664691 00:08
27 0.282811 0.305629 0.669700 00:08
28 0.280102 0.300712 0.678493 00:08
29 0.273880 0.301367 0.671941 00:08

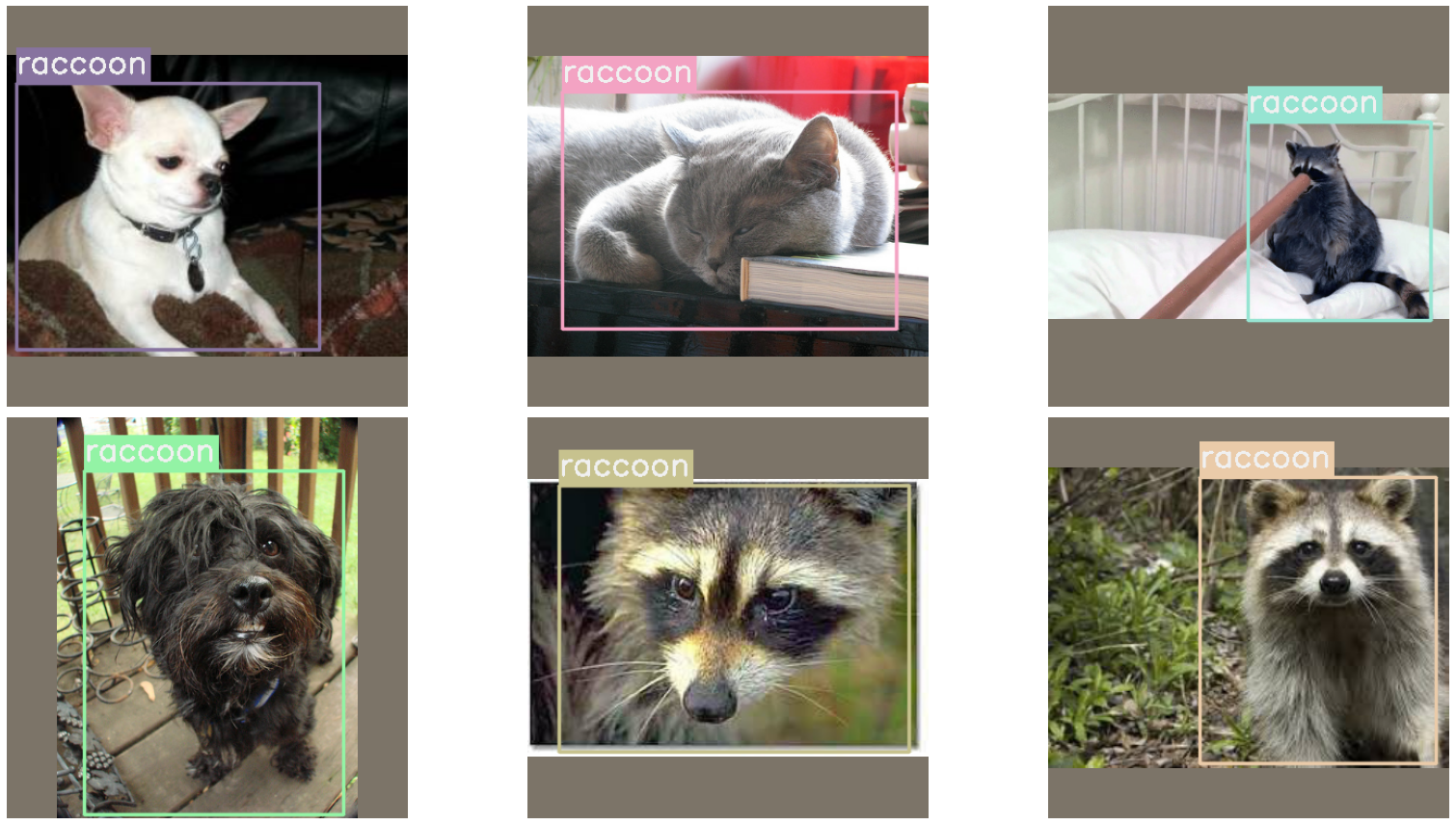

If only raccoon photos are showed during training, everything is a raccoon!

efficientdet.show_results(raccoon_model, combined_valid_ds, class_map=class_map)

png

Raccoons + pets

combined_model = efficientdet.model('tf_efficientdet_lite0', num_classes=len(class_map), img_size=size)
combined_learn = efficientdet.fastai.learner(dls=[combined_train_dl, combined_valid_dl], model=combined_model, metrics=metrics)

combined_learn.fine_tune(30, 1e-2, freeze_epochs=5)
epoch train_loss valid_loss COCOMetric time
0 426.231720 3113.471436 0.000021 00:12
1 344.480865 2650.498291 0.000036 00:11
2 206.628662 606.958130 0.001016 00:11
3 126.901100 243.355576 0.056071 00:11
4 82.448853 109.352119 0.030934 00:10
epoch train_loss valid_loss COCOMetric time
0 1.062148 51.029591 0.089626 00:12
1 0.927982 24.122263 0.161439 00:12
2 0.834056 10.649617 0.218092 00:12
3 0.797795 11.055972 0.274900 00:12
4 0.765396 7.913944 0.280049 00:12
5 0.727915 3.130997 0.271282 00:12
6 0.714074 4.496913 0.217573 00:12
7 0.713696 3.117041 0.384929 00:12
8 0.671189 1.860370 0.311723 00:12
9 0.637322 1.757796 0.406194 00:12
10 0.611760 2.911715 0.369743 00:12
11 0.590360 6.035703 0.444911 00:12
12 0.574620 2.676531 0.419094 00:12
13 0.547478 4.088236 0.514613 00:12
14 0.518071 3.934689 0.492547 00:12
15 0.501104 2.299222 0.502294 00:12
16 0.476237 3.566992 0.424591 00:12
17 0.451466 3.532001 0.524310 00:12
18 0.437068 2.166881 0.551229 00:12
19 0.406420 2.166020 0.590745 00:12
20 0.383731 2.122064 0.548815 00:12
21 0.378371 2.332926 0.583251 00:12
22 0.381634 1.484042 0.551595 00:12
23 0.374729 2.162852 0.594631 00:12
24 0.364782 2.040329 0.628670 00:12
25 0.348715 1.812243 0.597921 00:12
26 0.335386 1.620427 0.630255 00:12
27 0.322967 1.752403 0.625841 00:12
28 0.327148 1.533834 0.629842 00:12
29 0.323913 1.508479 0.627119 00:12

When negative samples are used during training, the model get's way better understading what is not a raccoon.

efficientdet.show_results(combined_model, combined_valid_ds, class_map=class_map)

png

Happy Learning!

That's it folks! If you need any assistance, feel free to join our forum.
