Custom Parser - Simple

Installing IceVision and IceData

If on Colab run the following cell, else check the installation instructions

# IceVision - IceData - MMDetection - YOLO v5 Installation
!wget https://raw.githubusercontent.com/airctic/icevision/master/install_colab.sh
!chmod +x install_colab.sh && ./install_colab.sh

Imports

As always, let's import everything from icevision. Additionally, we will also need pandas (you might need to install it with pip install pandas).

from icevision.all import *
import pandas as pd

Download dataset

We're going to be using a small sample of the chess dataset, the full dataset is offered by roboflow here

data_url = "https://github.com/airctic/chess_sample/archive/master.zip"
data_dir = icedata.load_data(data_url, 'chess_sample') / 'chess_sample-master'

Understand the data format

In this task we were given a .csv file with annotations, let's take a look at that.

Important

Replace source with your own path for the dataset directory.

df = pd.read_csv(data_dir / "annotations.csv")
df.head()

	filename	width	height	label	xmin	ymin	xmax	ymax
0	0.jpg	416	416	black-bishop	280	227	310	284
1	0.jpg	416	416	black-king	311	110	345	195
2	0.jpg	416	416	black-queen	237	85	262	159
3	0.jpg	416	416	black-rook	331	277	366	333
4	0.jpg	416	416	black-rook	235	3	255	51

At first glance, we can make the following assumptions:

Multiple rows with the same filename, width, height
A label for each row
A bbox [xmin, ymin, xmax, ymax] for each row

Once we know what our data provides we can create our custom Parser.

Create the Parser

The first step is to create a template record for our specific type of dataset, in this case we're doing standard object detection:

template_record = ObjectDetectionRecord()

Now use the method generate_template that will print out all the necessary steps we have to implement.

Parser.generate_template(template_record)

class MyParser(Parser):
    def __init__(self, template_record):
        super().__init__(template_record=template_record)
    def __iter__(self) -> Any:
    def __len__(self) -> int:
    def record_id(self, o) -> Hashable:
    def parse_fields(self, o, record, is_new):
        record.set_filepath(<Union[str, Path]>)
        record.set_img_size(<ImgSize>)
        record.detection.add_bboxes(<Sequence[BBox]>)
        record.detection.set_class_map(<ClassMap>)
        record.detection.add_labels(<Sequence[Hashable]>)

We can copy the template and use it as our starting point. Let's go over each of the methods we have to define:

__init__: What happens here is completely up to you, normally we have to pass some reference to our data, data_dir in our case.
__iter__: This tells our parser how to iterate over our data, each item returned here will be passed to parse_fields as o. In our case we call df.itertuples to iterate over all df rows.
__len__: How many items will be iterating over.
imageid: Should return a Hashable (int, str, etc). In our case we want all the dataset items that have the same filename to be unified in the same record.
parse_fields: Here is where the attributes of the record are collected, the template will suggest what methods we need to call on the record and what parameters it expects. The parameter o it receives is the item returned by __iter__.

Important

Be sure to pass the correct type on all record methods!

class ChessParser(Parser):
    def __init__(self, template_record, data_dir):
        super().__init__(template_record=template_record)

        self.data_dir = data_dir
        self.df = pd.read_csv(data_dir / "annotations.csv")
        self.class_map = ClassMap(list(self.df['label'].unique()))

    def __iter__(self) -> Any:
        for o in self.df.itertuples():
            yield o

    def __len__(self) -> int:
        return len(self.df)

    def record_id(self, o) -> Hashable:
        return o.filename

    def parse_fields(self, o, record, is_new):
        if is_new:
            record.set_filepath(self.data_dir / 'images' / o.filename)
            record.set_img_size(ImgSize(width=o.width, height=o.height))
            record.detection.set_class_map(self.class_map)

        record.detection.add_bboxes([BBox.from_xyxy(o.xmin, o.ymin, o.xmax, o.ymax)])
        record.detection.add_labels([o.label])

Let's randomly split the data and parser with Parser.parse:

parser = ChessParser(template_record, data_dir)

train_records, valid_records = parser.parse()

Let's take a look at one record:

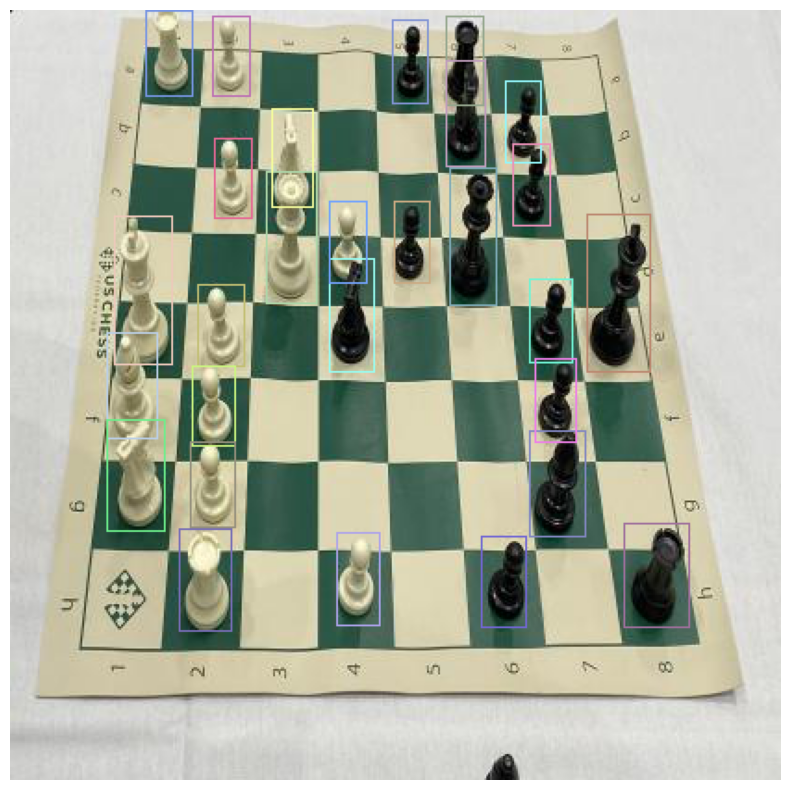

show_record(train_records[0], display_label=False, figsize=(14, 10))

png

train_records[0]

BaseRecord

common:
    - Filepath: /home/lgvaz/.icevision/data/chess_sample/chess_sample-master/images/0.jpg
    - Image: None
    - Image ID: 0
    - Image size ImgSize(width=416, height=416)
detection:
    - BBoxes: [<BBox (xmin:280, ymin:227, xmax:310, ymax:284)>, <BBox (xmin:311, ymin:110, xmax:345, ymax:195)>, <BBox (xmin:237, ymin:85, xmax:262, ymax:159)>, <BBox (xmin:331, ymin:277, xmax:366, ymax:333)>, <BBox (xmin:235, ymin:3, xmax:255, ymax:51)>, <BBox (xmin:267, ymin:38, xmax:286, ymax:82)>, <BBox (xmin:271, ymin:72, xmax:291, ymax:116)>, <BBox (xmin:280, ymin:145, xmax:303, ymax:190)>, <BBox (xmin:283, ymin:188, xmax:305, ymax:233)>, <BBox (xmin:254, ymin:284, xmax:278, ymax:333)>, <BBox (xmin:206, ymin:5, xmax:225, ymax:50)>, <BBox (xmin:207, ymin:103, xmax:226, ymax:147)>, <BBox (xmin:235, ymin:27, xmax:256, ymax:84)>, <BBox (xmin:172, ymin:134, xmax:196, ymax:195)>, <BBox (xmin:138, ymin:87, xmax:165, ymax:158)>, <BBox (xmin:91, ymin:280, xmax:119, ymax:335)>, <BBox (xmin:73, ymin:0, xmax:98, ymax:46)>, <BBox (xmin:56, ymin:111, xmax:87, ymax:191)>, <BBox (xmin:52, ymin:174, xmax:79, ymax:231)>, <BBox (xmin:141, ymin:53, xmax:163, ymax:106)>, <BBox (xmin:52, ymin:221, xmax:83, ymax:281)>, <BBox (xmin:172, ymin:103, xmax:192, ymax:147)>, <BBox (xmin:109, ymin:3, xmax:129, ymax:46)>, <BBox (xmin:110, ymin:69, xmax:130, ymax:112)>, <BBox (xmin:101, ymin:148, xmax:126, ymax:192)>, <BBox (xmin:98, ymin:192, xmax:121, ymax:235)>, <BBox (xmin:97, ymin:233, xmax:121, ymax:279)>, <BBox (xmin:176, ymin:282, xmax:199, ymax:332)>]
    - Class Map: <ClassMap: {'background': 0, 'black-bishop': 1, 'black-king': 2, 'black-queen': 3, 'black-rook': 4, 'black-pawn': 5, 'black-knight': 6, 'white-queen': 7, 'white-rook': 8, 'white-king': 9, 'white-bishop': 10, 'white-knight': 11, 'white-pawn': 12}>
    - Labels: [1, 2, 3, 4, 4, 5, 5, 5, 5, 5, 5, 5, 6, 6, 7, 8, 8, 9, 10, 11, 11, 12, 12, 12, 12, 12, 12, 12]

Next steps

This was just merged, come help us adjusting the documentation and fixing the bugs

Conclusion

And that's it! Now that you have your data in the standard library record format, you can use it to create a Dataset, visualize the image with the annotations and basically use all helper functions that IceVision provides!

Happy Learning!

If you need any assistance, feel free to join our forum.
